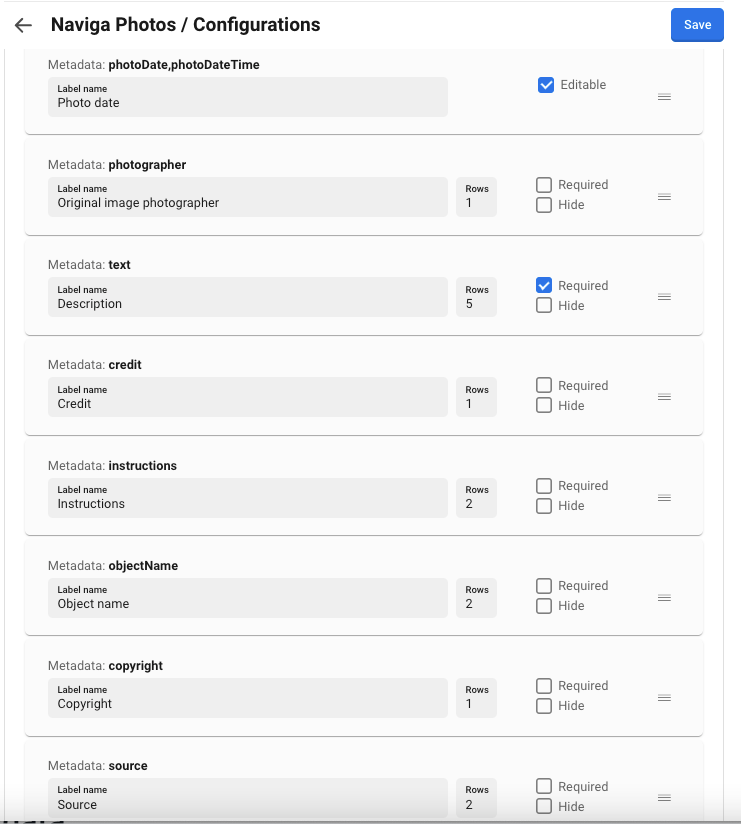

# Metadata ## File ### Standard fields The following fields from the photo file are always present when adding or editing metadata. The label shown in the user interface, the height of the edit field (in rows) and whether the field should be required or not can be configured. The fields can be sorted and if a field is hidden, it won't be visible for the user.
{% hint style="warning" %} Only changes within the standard metadata fields is part of the downloaded photo. {% endhint %} ### Extra file metadata Configures which additional metadata fields from a photo file that can be added or edited in the user interface. Consists of an array of objects. Each object corresponds to a single metadata field from the file. If both xmp and iptc are specified, xmp will be used if a value exists in the file, otherwise it will fall back to using the iptc value. If neither xmp or iptc is specified, an empty field will be rendered. This is useful for **adding custom metadata** that is not present in the file. [Allowed xmp-tags](https://docs.navigaglobal.com/naviga-photos/3.0.5-1/admin-guide/configuration/metadata/xmp) [Allowed iptc-tags](https://docs.navigaglobal.com/naviga-photos/3.0.5-1/admin-guide/configuration/metadata/iptc) | Key | Type | Description | | ----------------- | ------- | ----------------------------------------------------------------------------------------------------------------------------------------------------- | | labelName | string | The label shown in the user interface | | xmp | string | The name of this metadata in the xmp data of the file | | iptc | string | The name of this metadata in the [iptc](https://docs.navigaglobal.com/naviga-photos/3.0.5-1/admin-guide/configuration/metadata/iptc) data of the file | | rows | number | The height of the edit field shown in the user interface | | mapToMetadataName | string | The name of the field that will be used to save this metadata in OC | | required | boolean | Should entering a value be required in the user interface | The following example configuration contains a custom field (Alt text), and a field from iptc (City). ``` [ { "labelName": "Alt text", "rows": 3, "mapToMetadataName": "altText", "required": false }, { "labelName": "City", "iptc": "City", "rows": 1, "mapToMetadataName": "city", "required": false } ] ``` {% hint style="danger" %} If you are not using "Extra file metadata", the configuration needs to contain a pair of empty square brackets: \[ ] {% endhint %} #### Select and checkbox When **adding custom metadata**, a select or a checkbox can be rendered instead of a text field. Additional keys used for this are: | Key | Type | Description | | -------------------- | ---------------- | ---------------------------------------------------------------------------------------------- | | fieldType | string | The only valid values are: 'checkbox' and 'select' | | defaultCheckboxValue | boolean | true makes the checkbox checked | | selectOptions | array of strings | Options shown in the select. | | defaultSelectValue | string | The value initially selected in the select. Needs to exist among the options in selectOptions. | {% hint style="warning" %} A select or checkbox can not use values from xmp or iptc. A checkbox can not be required. {% endhint %} Example configurations of checkbox and select: ``` [ { "labelName": "Regular checkbox", "mapToMetadataName": "checkbox", "fieldType": "checkbox" }, { "labelName": "Checked checkbox", "mapToMetadataName": "checkboxDefaultTrue", "fieldType": "checkbox", "defaultCheckboxValue": true } { "labelName": "Select", "mapToMetadataName": "select", "fieldType": "select", "selectOptions": ["one","two","three"] }, { "labelName": "Select with default value", "mapToMetadataName": "selectWithDefault", "fieldType": "select", "selectOptions": ["alpha","beta","gamma"], "defaultSelectValue": "beta" }, { "labelName": "Select required", "mapToMetadataName": "selectRequired", "fieldType": "select", "selectOptions": ["red","green","blue"], "required": true } ] ``` {% hint style="danger" %} ### **If upgrading from 1.1 to 2.0** Before 2.0, the standard metadata fields were part of "Extra file metadata". If they are present in the configuration, **please remove them!** You will not be able to save the config until this is done. {% endhint %} ## Concepts Configures which concept types that can be added or edited in the user interface. Consists of an array of objects. | Key | Type | Description | | ------- | ---------------- | ---------------------------------------------------------------------- | | label | string | The label shown in the user interface | | title | string | The text used in the concept search input. "Search {title}" | | rel | string | The relation type | | filters | array of objects | An object has a single key, "ConceptImTypeFull" with the concept type. | #### Example: ``` [ { "label": "Author", "title": "author", "rel": "author", "filters": [ { "ConceptImTypeFull": "x-im/author" } ] }, { "label": "Tags", "title": "tags", "rel": "subject", "filters": [ { "ConceptImTypeFull": "x-im/person" }, { "ConceptImTypeFull": "x-im/organisation" }, { "ConceptImTypeFull": "x-im/topic" } ] } ] ``` {% hint style="warning" %} The usage of **rel** is that is saved as a part of the link that gets written to the document. Later it's used to extract the different configured types to be displayed accordingly. This makes it so that you should **NOT** use the same rel in two different objects. {% endhint %} #### Wrong example ⚠️ ```jsx // This is not how to do! [ { "label": "Category", "title": "category", "rel": "subject", // Don't do this "filters": [ { "ConceptImTypeFull": "x-im/category" } ] }, { "label": "Tags", "title": "tags", "rel": "subject", // while this is the same "filters": [ { "ConceptImTypeFull": "x-im/person" }, { "ConceptImTypeFull": "x-im/organisation" }, { "ConceptImTypeFull": "x-im/topic" } ] } ] ``` #### Correct example ✅ ```jsx [ { "label": "Category", "title": "category", "rel": "category", // Do this "filters": [ { "ConceptImTypeFull": "x-im/category" } ] }, [...] ] ``` ## Units **"Share with organization" checked by default** - controls whether "Share with organization" initially should be checked or not when uploading images.
