  1. Admin Guide
  2. Configuration

Base filters

This is the setting for creating new base filters with custom predefined filter options

Base filters

Contains an array of objects where each object is a base filter.

Key

Type

Description

id

number

A unique identifier number

text

string

The display name

filters

object

Defines filter for the base filter

services

array

An array of objects containing filter for services

services.text

string

The display name for the service filter

services.values

array

An array of strings with the service unique name in Wire OC

freeTexts

string

An array of objects containing filter for free text

freeTexts.text

string

The display name for the free text filter

freeTexts.values

array

An array of strings with free text's to filter on

Example:

[
    {
        "id": 1,
        "text": "The display name"
        "filters": {
            "services": [
                {
                    "text": "Example service filter",
                    "values": [
                        "a service to filter on",
                        "another service to filter on"
                    ]
                }
            ],
            "freeTexts": [
                {
                    "text": "Example free text filter",
                    "values": [
                        "the free text`s to filter on",
                        "another"
                    ]
                }
            ]
        }
    },
    {
        ...
    }
]

Example from a customer setup:

        {
                "id": 1,
                "filters": {
                        "services": [
                                {
                                        "text": "All",
                                        "values": []
                                }
                        ],
                        "freeTexts": []
                },
                "text": "All"
        },
        {
                "id": 2,
                "filters": {
                        "services": [
                                {
                                        "text": "AAP",
                                        "values": [
                                                "AAP"
                                        ]
                                }
                        ],
                        "freeTexts": []
                },
                "text": "AAP"
        },
        {
                "id": 3,
                "filters": {
                        "services": [
                                {
                                        "text": "AP",
                                        "values": [
                                                "AP"
                                        ]
                                }
                        ],
                        "freeTexts": []
                },
                "text": "AP"
        },
        {
                "id": 4,
                "filters": {
                        "services": [
                                {
                                        "text": "WAPO",
                                        "values": [
                                                "WP"
                                        ]
                                }
                        ],
                        "freeTexts": []
                },
                "text": "WP"
        },
        {
                "id": 5,
                "filters": {
                        "services": [
                                {
                                        "text": "BLOOMBERG",
                                        "values": [
                                                "BLOOMBERG"
                                        ]
                                }
                        ],
                        "freeTexts": []
                },
                "text": "BL"
        },
        {
                "id": 6,
                "filters": {
                        "services": [
                                {
                                        "text": "COMPLEX",
                                        "values": [
                                                "COMPLEX"
                                        ]
                                }
                        ],
                        "freeTexts": []
                },
                "text": "COMP"
        },
        {
                "id": 7,
                "filters": {
                        "services": [
                                {
                                        "text": "RNZ",
                                        "values": [
                                                "RNZ"
                                        ]
                                }
                        ],
                        "freeTexts": []
                },
                "text": "RNZ"
        },
        {
                "id": 8,
                "filters": {
                        "services": [
                                {
                                        "text": "BRAVO",
                                        "values": [
                                                "BRAVO"
                                        ]
                                }
                        ],
                        "freeTexts": []
                },
                "text": "BRAVO"
        },
        {
                "id": 9,
                "filters": {
                        "services": [
                                {
                                        "text": "CNBC",
                                        "values": [
                                                "CNBC"
                                        ]
                                }
                        ],
                        "freeTexts": []
                },
                "text": "CNBC"
        },
        {
                "id": 10,
                "filters": {
                        "services": [
                                {
                                        "text": "TJN",
                                        "values": [
                                                "TJN"
                                        ]
                                }
                        ],
                        "freeTexts": []
                },
                "text": "TJN"
        },
        {
                "id": 11,
                "filters": {
                        "services": [
                                {
                                        "text": "TELEGRAPH",
                                        "values": [
                                                "The-Telegraph"
                                        ]
                                }
                        ],
                        "freeTexts": []
                },
                "text": "TELE"
        }
]

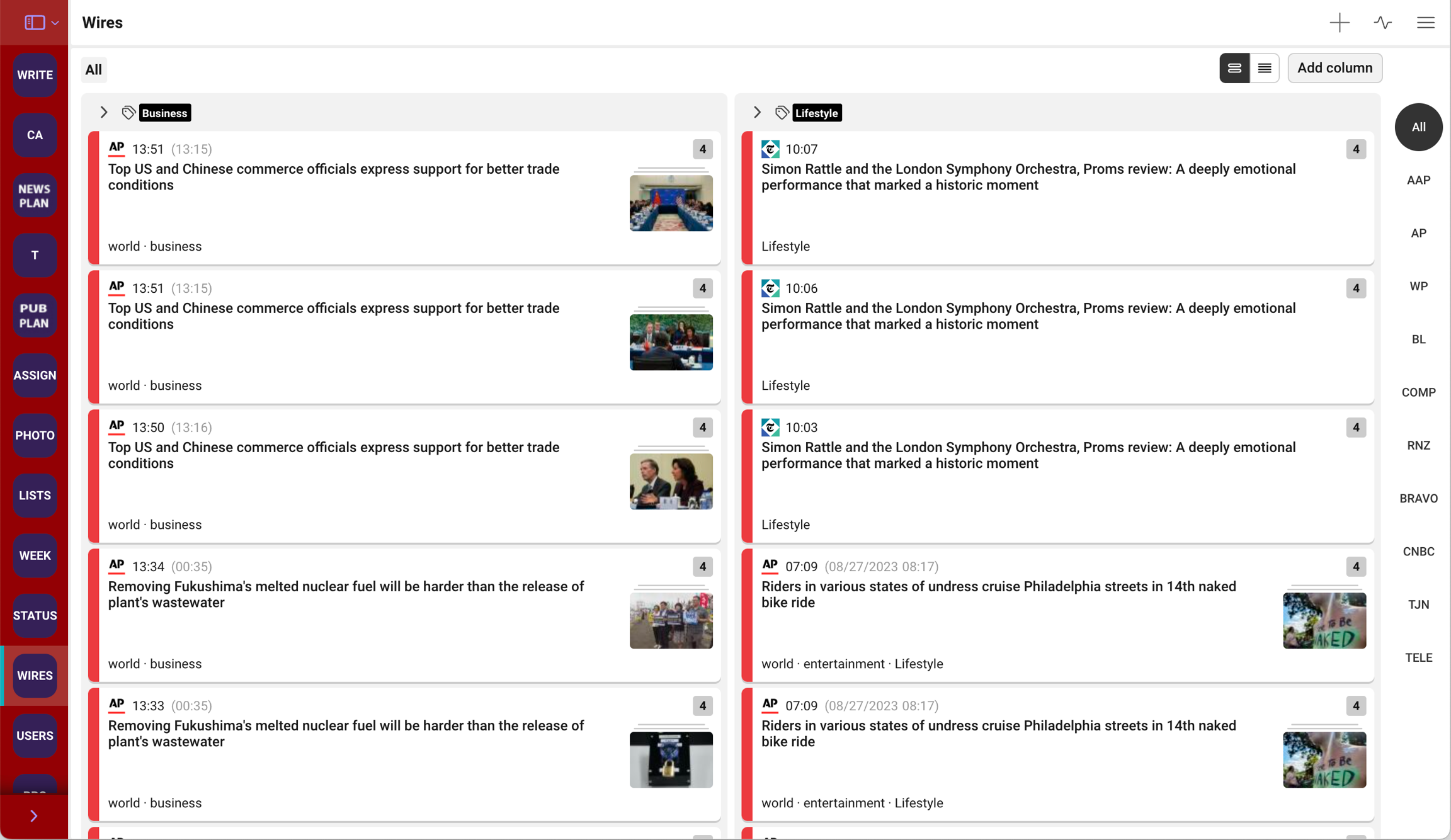

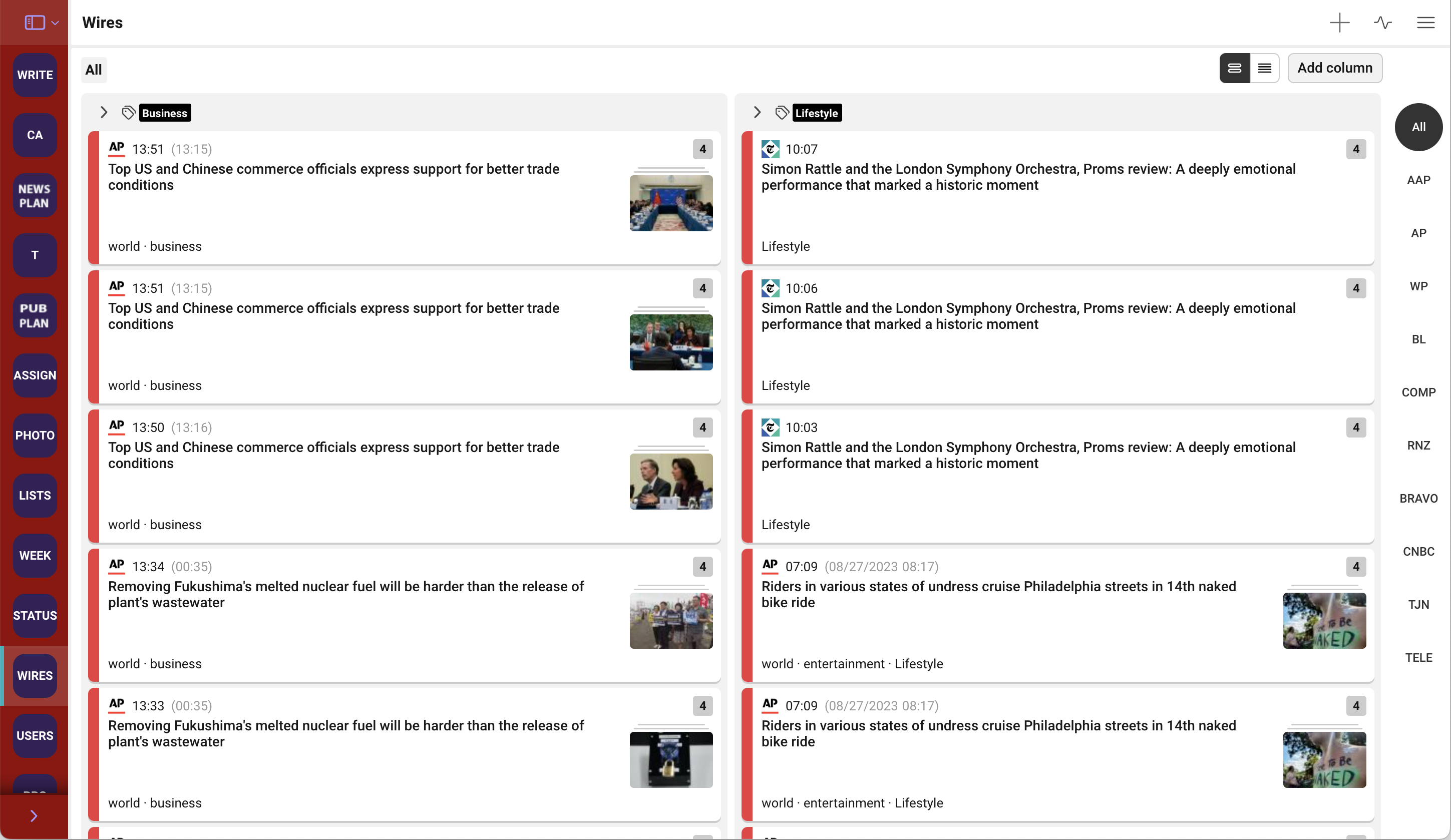

And how this configuration appears in Dashboard:

PreviousICP configuration examplesNextDropdown filters

Last updated 4 months ago

Was this helpful?

The names of the filters are shown in the right sidebar. These filters are named by the "text" key in the Base Filters configuration.

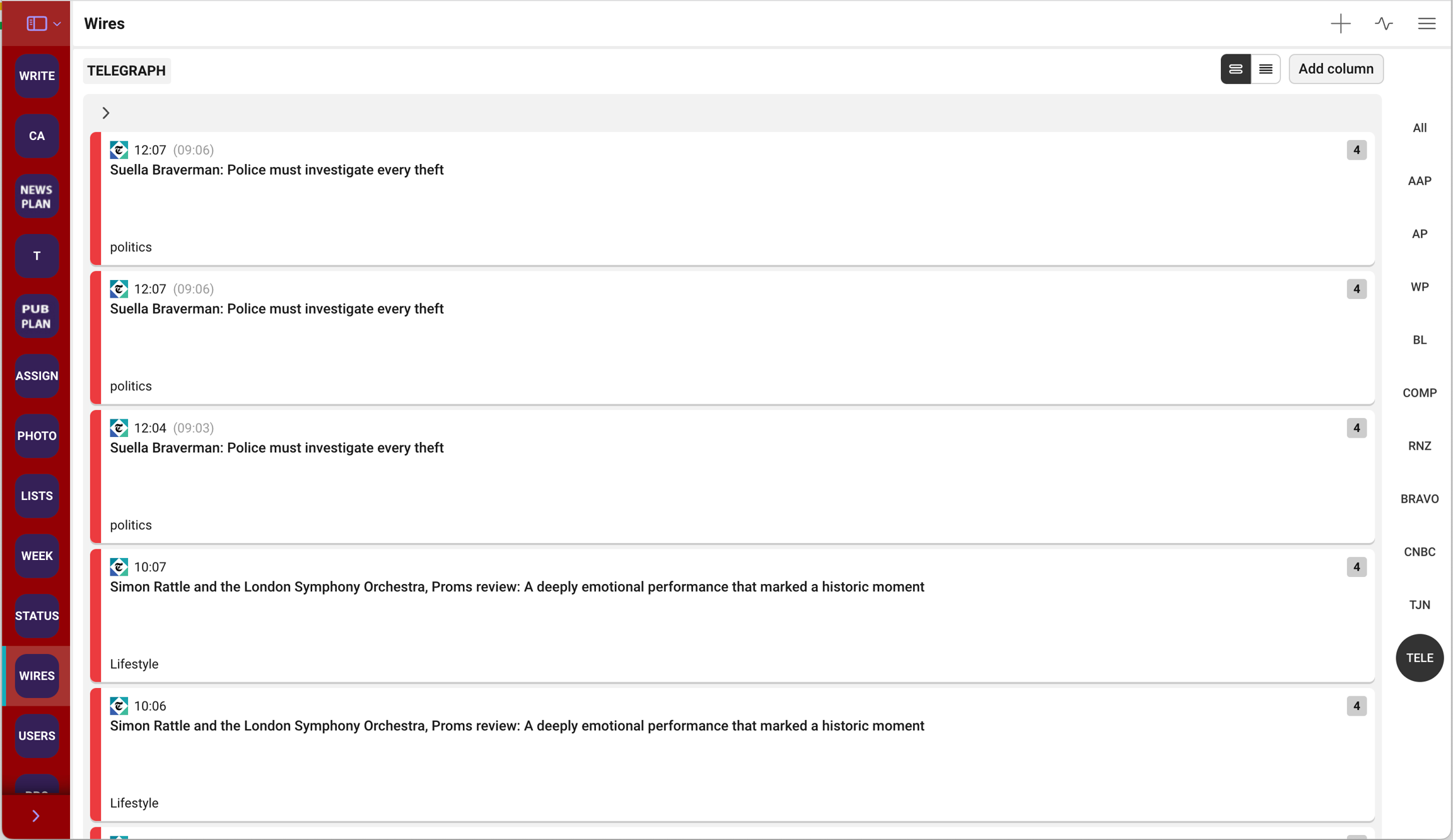

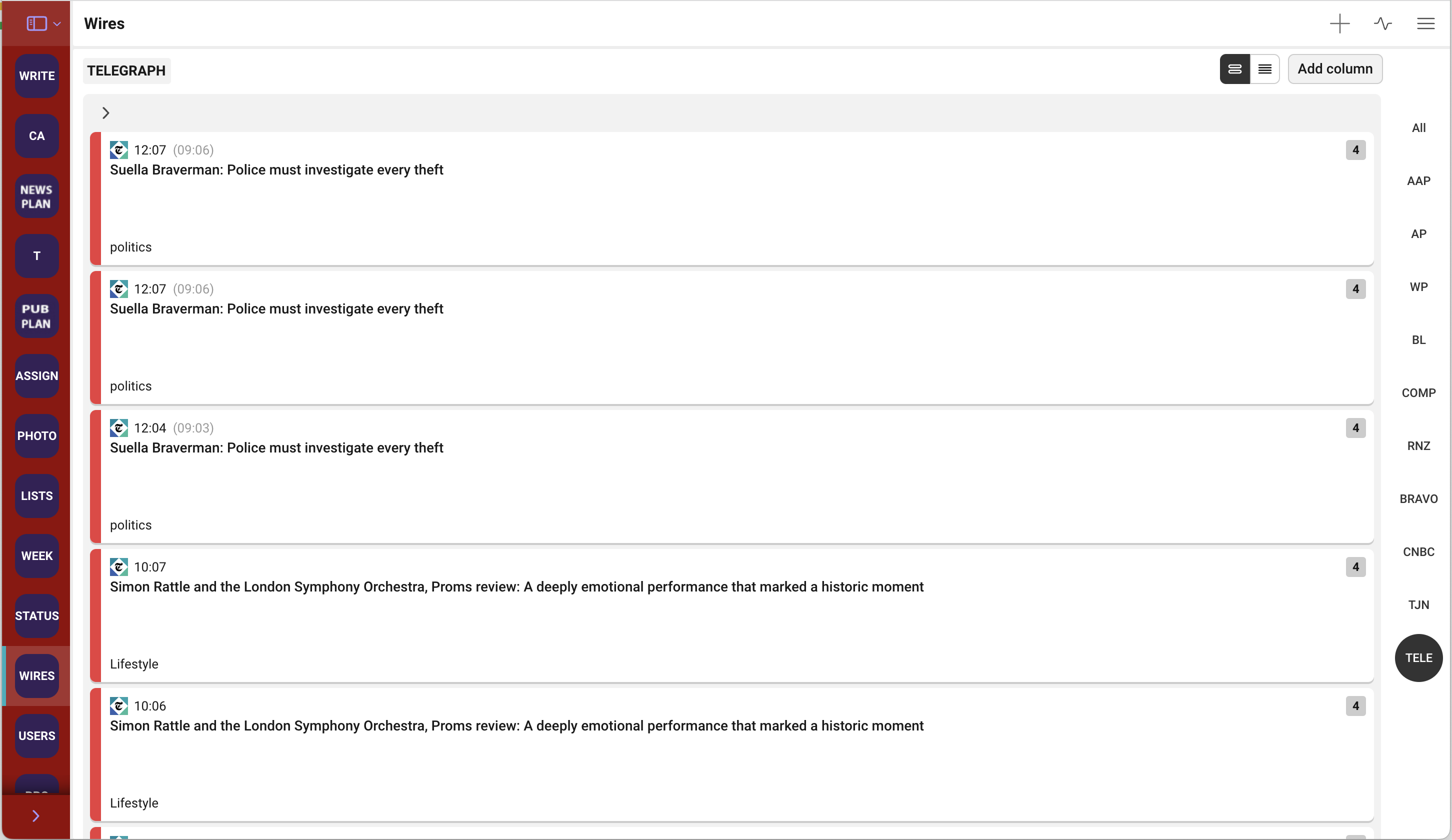

When a user selects a filter, the service is identified at the top of the Wire Dashboard by the "services.text" key in the Base Filters configuration.
