Integrate with Newsroom Planner

Newsroom Planner uses other plugins functionality to complete some of its tasks.

For example NRP relying on Naviga Photos to handle searching for images and handle images metadata.

Newsroom Planner uses Dashboard portals to render other plugins components in its own context.

Thanks to Dashboard mappings you can replace Naviga Photos with your own image service portal and integrate your plugin into Newsroom Planner

What kind of portals does Newsroom Planner use?

Newsroom Planner uses 4 different portals in order to search for images and link them or display images as a gallery or upload images.

Portal	Description
ImageSearch	Search for images and link them to an Assignment.
ImageGallery	Display Assignment's images.
ImageMetadata	Change Assignment's images metadata.
ImageUpload	Upload Images, and link them to an Assignment.

ImageSearch portal

This portal used to search for images and link the selected images to the active assignment.

Where is it rendered?

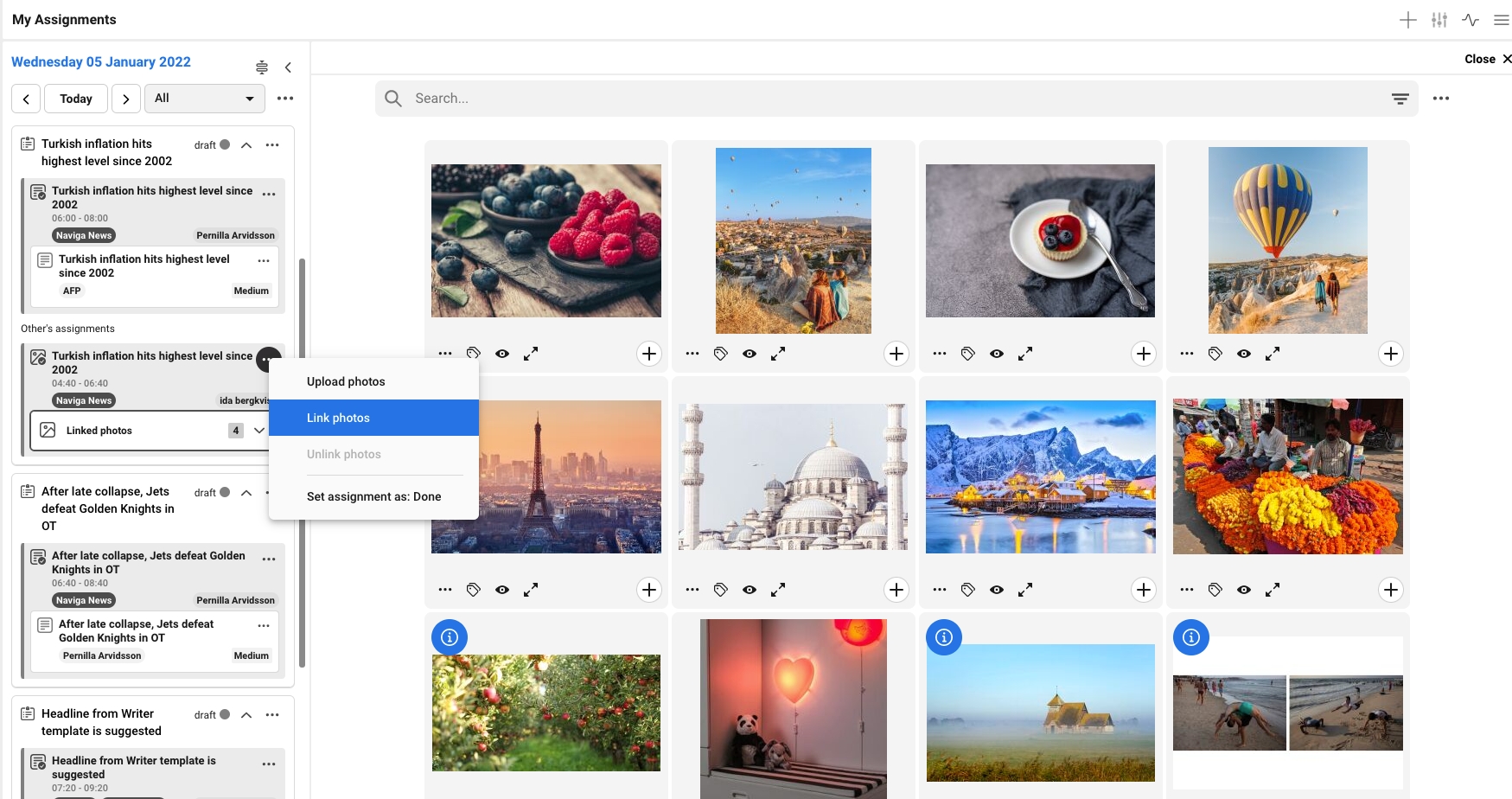

In My assignment view:

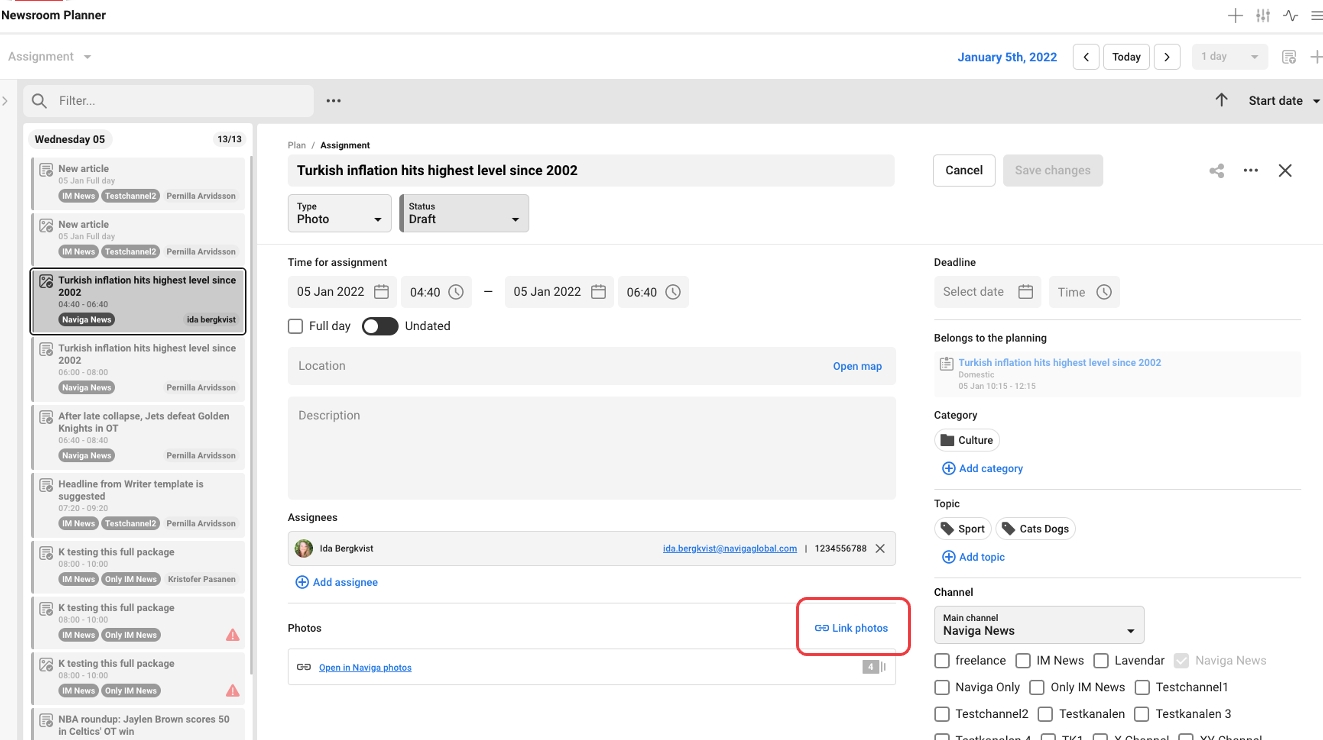

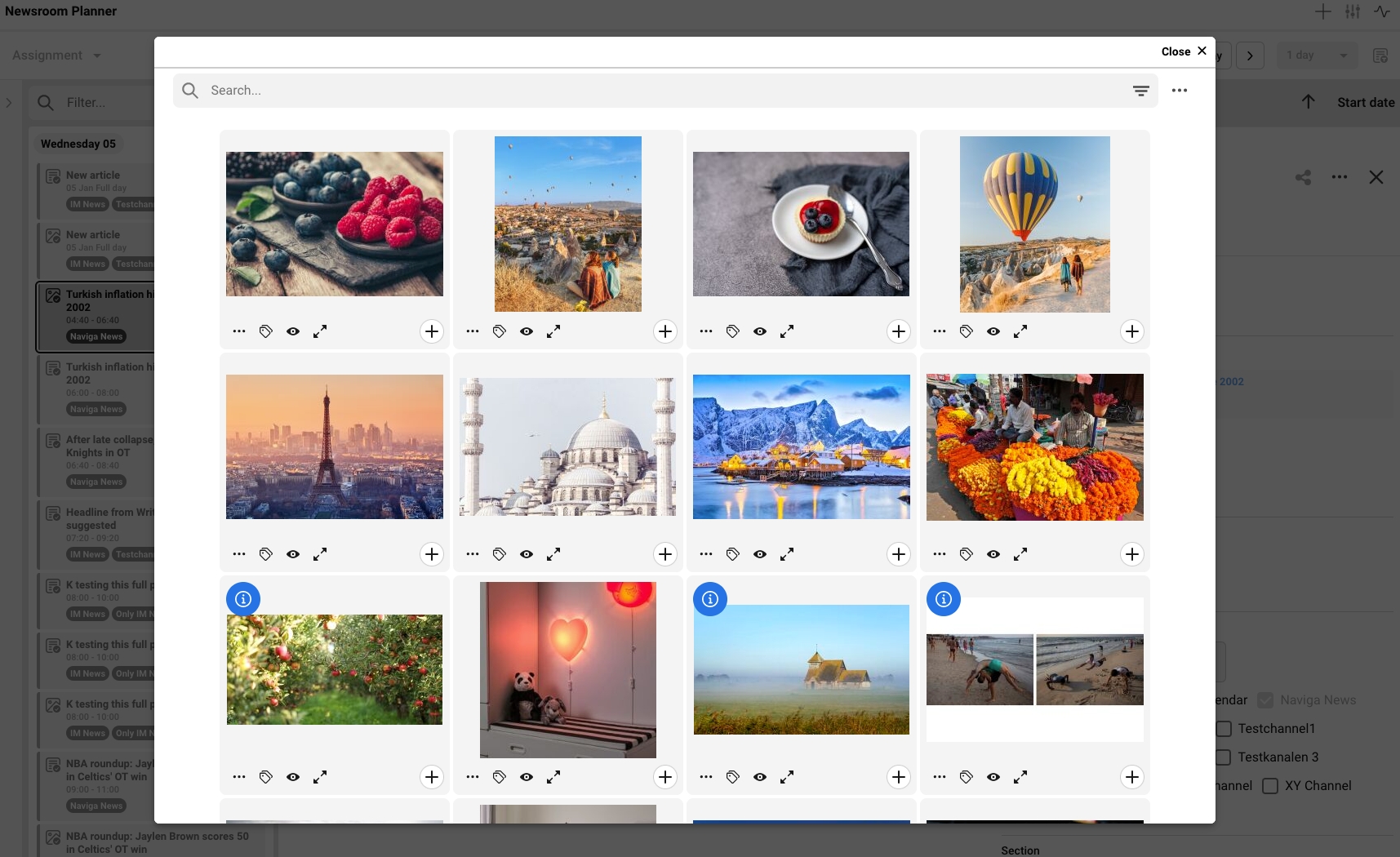

In assignment detail view:

Props:

Name	Type	Description
onLink	Function	A callback function expected to be called with array of image's uuid, filename.
localizations	Object	A localizations object contains localized strings.
editMode	Boolean	A flag to tell the portal that NRP in an edit mode or not.

Newsroom Planner doesn't call any methods from ImageSearch portal

Example:

const MySearchPortal = props => {
    const [selectedImages, setSelectedImages] = useState([])

    const {
        onLink
    } = props

    const handleOnSelect = selectedImage => {
        const images = selectedImages.push(selectedImage)
        setSelectedImages(images)
    }

    const handleLinkImages = () => {
        /*
            selectedImages format:
            [
                {
                    filename: 'myImage.jpg'
                    uuid: '123-123-321321-123-123'
                },
                {
                    filename: 'logo.jpg'
                    uuid: '444-423-774238-321-006'
                }
            ]
        */
        onLink(selectedImages)
    }

    return (
        <div>
            <SearchInput />

            <LinkButton onClick={handleLinkImages}/>

            <ImagesWrapper onSelect={handleOnSelect}>
                <img />
                <img />
                <img />
                <img />
                <img />
            </ImagesWrapper>
        </div>
    )
}

Localizations

Supports English & Swedish

console.log(this.props.localizations)
/*
    {
        link: 'Link selected photos'
    }
*/

How Newsroom Planner render ImageSearch

const ImageSearchWrapper = props => {
    const {
        editMode,
        localize,
        linkImagesToAssignment
    } = props

    const handleOnLink = selectedImages => {
        linkImagesToAssignment(selectedImages)
    }

    return (
        <div>
            <ImageSearch
                editMode={editMode}
                onLink={handlOnLink}
                localizations={{
                    link: localize('linkSelectedPhotos')
                }}
            />
        </div>
    )
}

ImageGallery portal

This portal used to display the active assignment's images.

Where is it rendered?

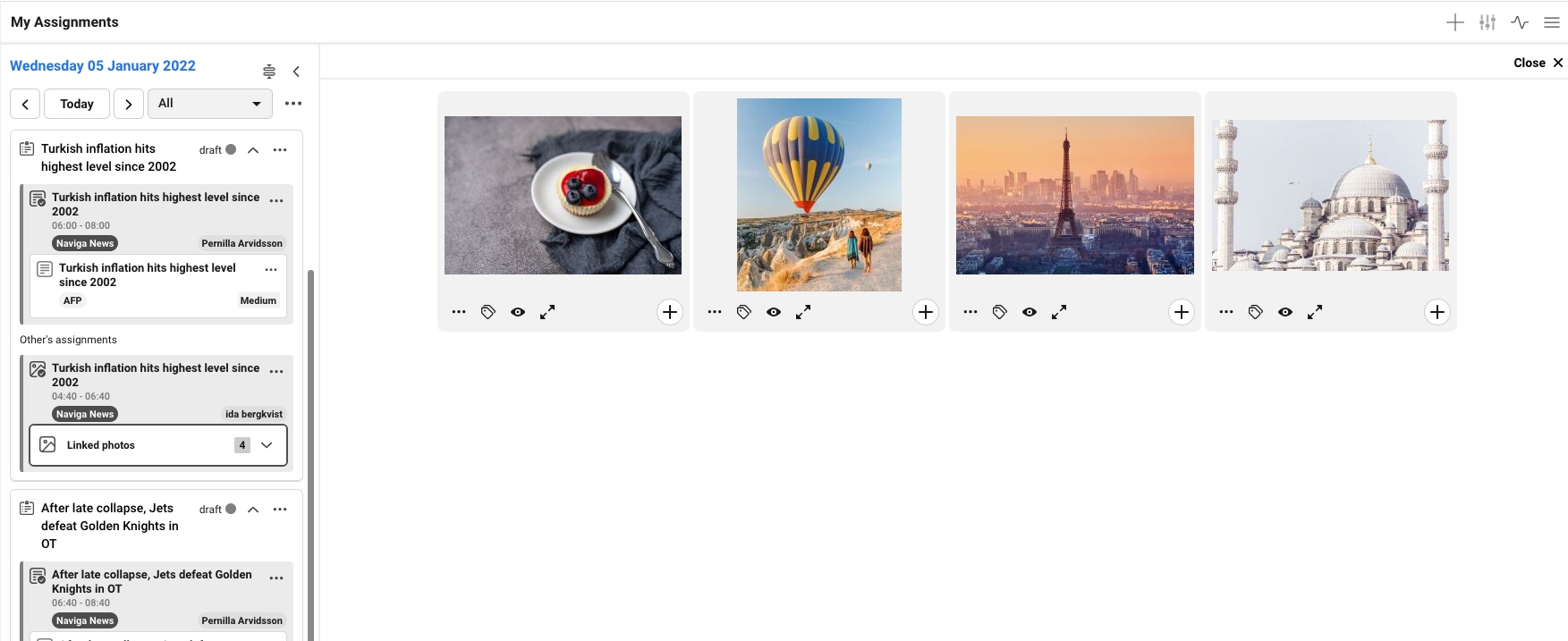

In My assignment view:

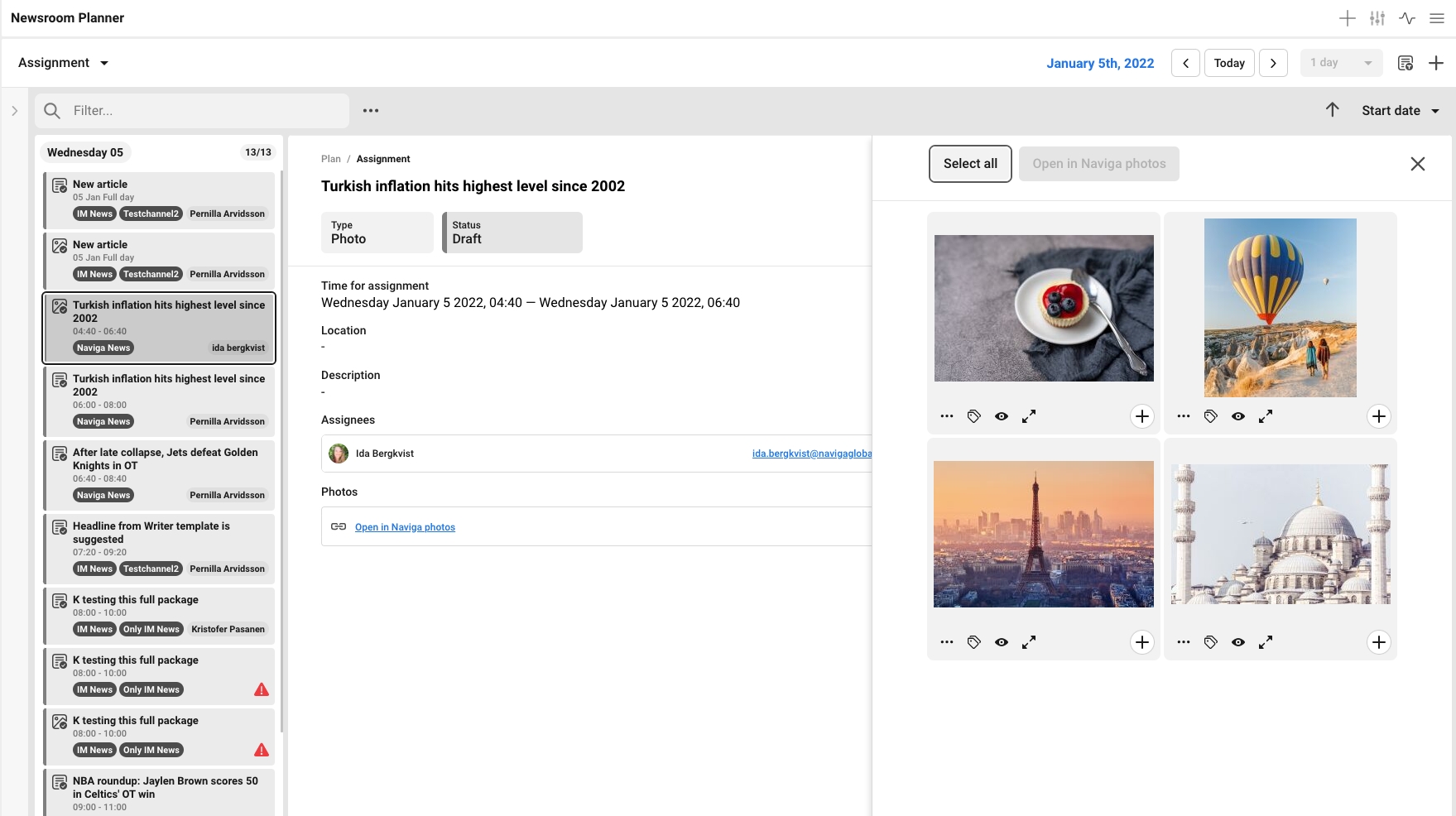

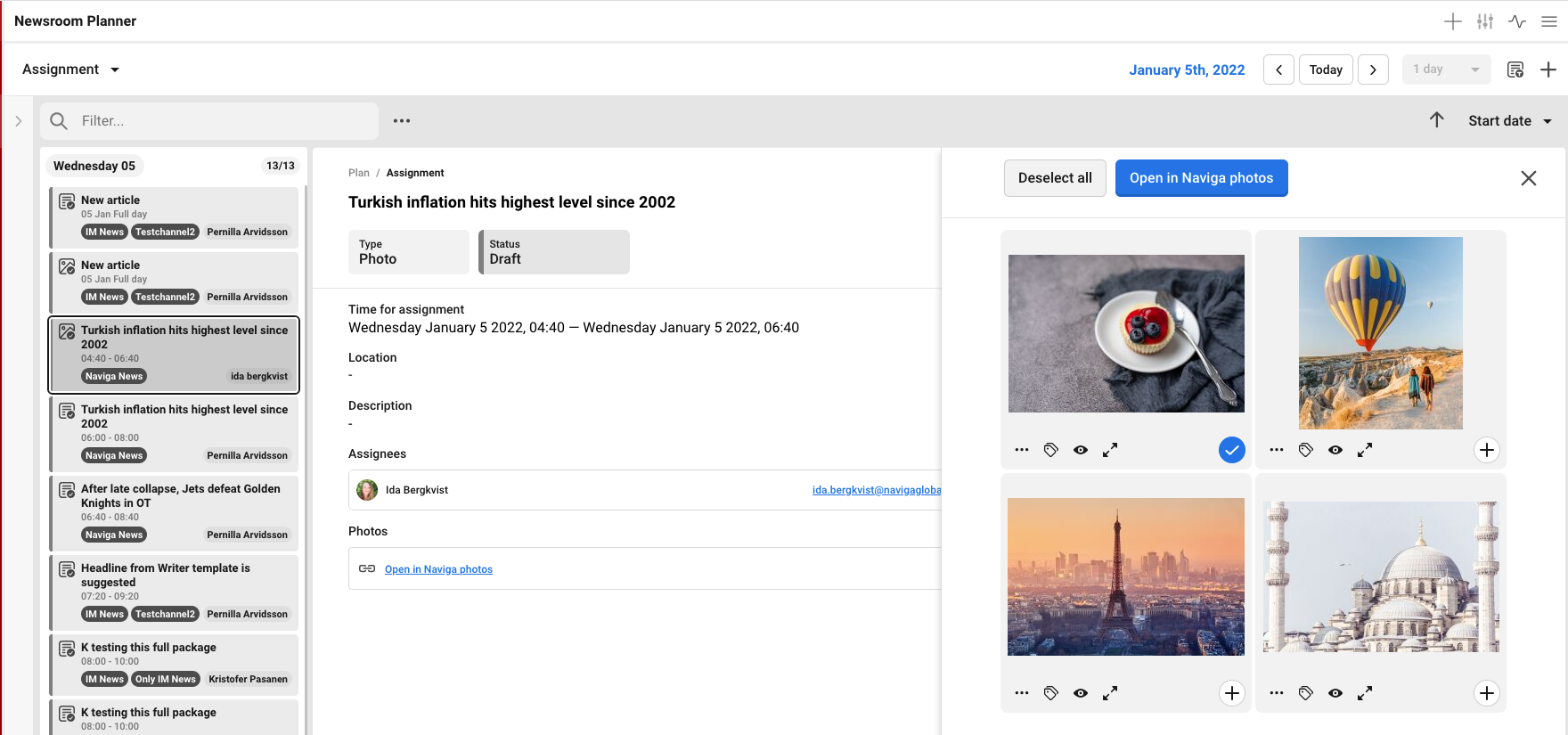

In assignment detail view:

Props:

Name	Type	Description
onSave	Function	A callback function expected to be called if the portal made any changes to the mages.
onCancel	Function	A callback function expected to be called if the portal made any changes to the images.
confirm	Function	A confirm helper method utilise Application Confirm.
closeConfirm	Function	A callback helper function to close the confirm dialog if it's triggered.
onSelection	Function	A callback function expected to be called with all the images and a boolean for the selected images. Used in My Assignment view more info below
images	Array	An array of the Assignment images.
editMode	Boolean	A boolean to tell the portal that NRP in an edit mode or not.
managePhotos	Boolean	A boolean to tell the portal if it can handle images metadata or not.
fullWidth	Boolean	A boolean to tell the portal if it's rendered within My Assignment view or Assignment Detail view more info below
localizations	Object	A localizations object contains localized strings.

NRP require some methods to be accessible from NRP components more info below

Example:

const MyGalleryPortal = (props, ref) => {
    const [images, setImages] = useState(props.images)

    const {
        onSave,
        onCancel,
        onSelection
    } = props

    useEffect(() => {
        /*
            Methods will be called by NRP.
        */
        if (ref && ref.current) {
            ref.current = {
                selectAll: () => {},
                deselectAll: () => {},
                updateImages: () => {}
            }
        }
    })

    const handleOnSelect = selectedImage => {
        const mappedItems = images.map(item => {
            if (item.uuid === selectedImage.uuid) {
                return {
                    ...item,
                    selected: true
                }
            } else {
                return item
            }
        })

        setImages(mappedItems)

        // Update NRP with updated images
        onSelection(mappedItems)
    }

    return (
        <div>
            <SearchInput />

            <LinkButton onClick={handleLinkImages}/>

            <ImagesWrapper onSelect={handleOnSelect}>
                <img />
                <img />
                <img />
                <img />
                <img />
            </ImagesWrapper>
        </div>
    )
}

export default forwardRef(MyGalleryPortal)

Localizations

Supports English & Swedish

console.log(this.props.localizations)
/*
    {
        link: 'Link selected photos'
    }
*/

Functions should be accessible from NRP provided by ImageGallery portal

• updateImages

  • A function will give the updated images from the Assignment.

• selectAll

  • A function to handle selecting all images.

• deselectAll

  • A function to handle deselect all images.

How NRP render ImageGallery

My Assignment view

const MyAssignmentPortalWrapper = props => {
    const {
        assignment,
        confirm,
        closeConfirm,
        closeGallery,
        resetImageGalleryPortal
    } = props

    const imageGalleryRef = useRef()

    /*
        This hook will track the active Assignemnt
        if the user clicked on another assignment to show the images
        this hook will call "updateImages" function from ImageGallery
        portal and pass the new active Assignment's images
    */
    useEffect(() => {
        if (imageGalleryRef.current && typeof imageGalleryRef.current.updateImages === 'function') {
            const updatedImages = assignment.images.map(item => {
                return {
                    uuid: item.uuid,
                    filename: item.filename
                }
            })

            imageGalleryRef.current.updateImages(updatedImages)
        }
    }, [assignment.uuid])

    const handleReset = () => {
        resetImageGalleryPortal()
    }

    const handleOnClose = () => {
        if (imageGalleryRef.current) {
            if (typeof imageGalleryRef.current.cancel === 'function') {
                imageGalleryRef.current.cancel()
            }
        }

        closeGallery()
    }

    const images = assignment.images.map(item => {
        return {
            uuid: item.uuid,
            filename: item.filename
        }
    })

    return (
        <div>
            <CloseButton onClick={handleOnClose}/>

            <ImageGallery
                editMode={true}
                managePhotos={true}
                confirm={confirm}
                images={assignment.images}
                ref={imageGalleryRef}
                onSave={handleReset}
                onCancel={handleReset}
                closeConfirm={closeConfirm}
                key={imageGalleryRenderKey}
            />
        </div>
    )
}

Assignment Detail view

const AssignmentDetailPortalWrapper = props => {
    const {
        assignment,
        confirm,
        closeConfirm,
        openMetadataModal
    } = props

    const [selectedImages, setSelectedImages] = useState([])

    const imageGalleryRef = useRef()

    const handleOnSelectction = images => {
        setSelectedImages(images.filter(image => image.selected))
    }

    const handleUnlinkFromAssignment = () => {
        if (selectedImages.length) {
            selectedImages.forEach(item => {
                unlinkImage(item.uuid)
            })

            if (imageGalleryRef.current) {
                if (typeof imageGalleryRef.current.updateImages === 'function') {
                    const updatedImages = assignment.images.map(i => {
                        return {
                            uuid: i.uuid,
                            filename: i.filename
                        }
                    })

                    imageGalleryRef.current.updateImages(updatedImages)
                }
            }

            setSelectedImages([])
        }
    }

    const handleSelect = () => {
        if (imageGalleryRef.current) {
            if (!selectedImages.length) {
                if (typeof imageGalleryRef.current.selectAll === 'function') {
                    imageGalleryRef.current.selectAll()
                }
            } else {
                if (typeof imageGalleryRef.current.desselectAll === 'function') {
                    imageGalleryRef.current.desselectAll()
                }
            }
        }
    }

    const handleImagesMetadata = () => {
        /*
            This function will open ImageMetadata portal inside a Modal
            with all selected images
        */
        openMetadataModal({
            images: selectedImages
        })
    }

    const images = assignment.images.map(item => {
        return {
            uuid: item.uuid,
            filename: item.filename
        }
    })

    return (
        <div>
            <OpenImagesMetadata onClick={handleImagesMetadata}/>

            <UnLinkButton onClick={handleUnlinkFromAssignment}/>

            <SelectButton onClick={handleSelect}/>

            <ImageGallery
                editMode={true}
                fullWidth={true}
                confirm={confirm}
                images={images}
                ref={imageGalleryRef}
                closeConfirm={closeConfirm}
                onSelectction={handleOnSelectction}
                localizations={{
                    link: localize('linkSelectedPhotos') // 'Link selected photos'
                }}
            />
        </div>
    )
}

ImageUpload portal

This portal used to upload images, and provide the uploaded images to be linked to the active assignment.

Where is it rendered?

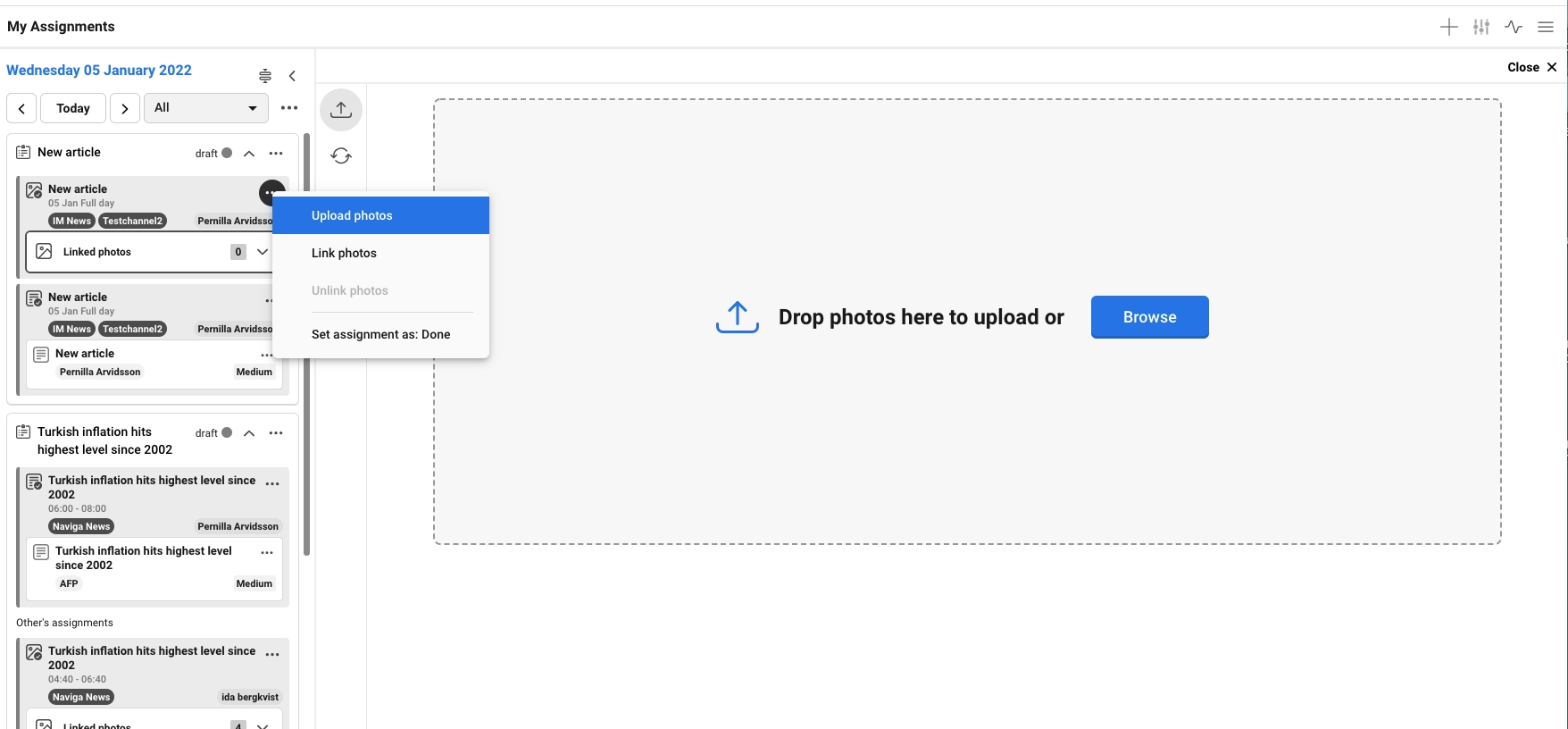

In My assignment view:

Props

Name	Type	Description
onDone	Function	A callback function expected to be called with images array when the images has been uploaded.
onUpload	Function	A callback function expected to be called when the portal starts uploading images.
onCancel	Function	A callback function expected to be called when the user cancel uploading images.
confirm	Function	A confirm helper method utilise Application Confirm.
closeConfirm	Function	A callback helper function to close the confirm dialog if it's triggered.

NRP require some methods to be accessible from NRP components more info below

Example

const MyUploadPortal = (props, ref) => {
    const [selectedFile, setSelectedFile] = useState(null)

    const {
        onDone,
        onUpload,
        onCancel
    } = props

    useEffect(() => {
        /*
            Methods will be called by NRP.
        */
        if (ref && ref.current) {
            ref.current = {
                cancel: cancelProccess
            }
        }
    })

    const handlePhotos = file => {
        setSelectedFile(file)
    }

    const handleUpload = () => {
        if (selectedFile) {
            onUpload()

            fetch('api/upload', {selectedFile})
                .then((response) => {
                    const uploadedImages = response.images.map(item => {
                        return {
                            uuid: item.uuid,
                            filename: item.filename
                        }
                    })

                    onDone(uploadedImages)
                })
        }
    }

    const handleCancel = () => {
        cancelProccess()
        onCancel()
    }

    const cancelProcesses = () => {
        // cacnel on going processes...
    }

    return (
        <div>
            <BrowsButton onChange={handlePhotos}/>

            <UploadButton onClick={handleUpload}/>

            <CancelButton onClick={handleCancel}/>
        </div>
    )
}

export default forwardRef(MyUploadPortal)

Functions should be accessible from NRP provided by ImageUpload portal

• cancel

  • A function will be called when the ImageUpload portal is unmounted to clean up onGoing processes for example.

How NRP render ImageUpload

const MyAssignmentPortalWrapper = props => {
    const {
        assignment,
        confirm,
        closeConfirm,
        closeUploadPortal
    } = props

    const imageUploadRef = useRef()

    const handleOnClose = () => {
        if (imageUploadRef.current) {
            if (typeof imageUploadRef.current.cancel === 'function') {
                imageUploadRef.current.cancel()
            }
        }

        closeUploadPortal()
    }

    const handleUploadedImages = uploadedImages => {
        assignment.linkImages(uploadedImages)
    }

    const handleOnUploadStart = () => {
        assignment.setUploadingFlag()
    }

    return (
        <div>
            <CloseButton onClick={handleOnClose}/>

            <ImageUpload
                confirm={confirm}
                ref={imageUploadRef}
                onCancel={handleOnCancel}
                closeConfirm={closeConfirm}
                onDone={handleUploadedImages}
                onUpload={handleOnUploadStart}
            />
        </div>
    )
}

ImageMetadata portal

This portal used to change images metadata

Where is it rendered?

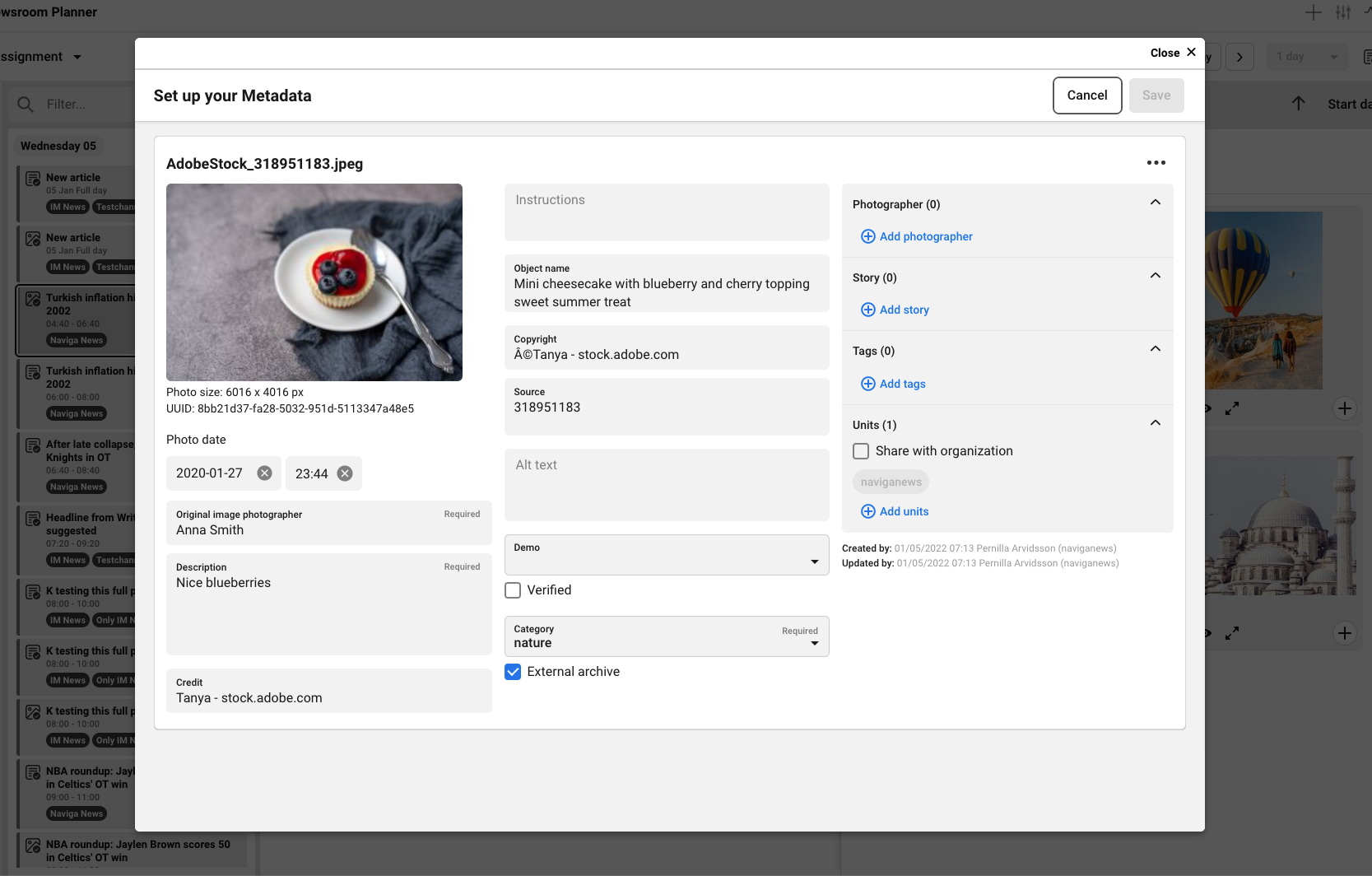

In Assignment detail view:

Props

Name	Type	Description
images	Array	An array of the selected images to change metadata on them.
onSave	Function	A callback function expected to be called when the user done with updating metadata for the images.
onCancel	Function	A callback function expected to be called when the user cancel updating images metadata.
confirm	Function	A confirm helper method utilise Application Confirm.
closeConfirm	Function	A callback helper function to close the confirm dialog if it's triggered.

NRP require some methods to be accessible from NRP components more info below

Example

const MyMetadataPortal = (props, ref) => {
    const {
        images,
        onSave,
        onCancel
    } = props

    useEffect(() => {
        /*
            Methods will be called by NRP.
        */
        if (ref && ref.current) {
            ref.current = {
                cancel: cancelProccess
            }
        }
    })

    const handleSave = () => {
        // Update images metadata

        onSave()
    }

    const handleCancel = () => {
        cancelProccess()
        onCancel()
    }

    const cancelProcesses = () => {
        // cacnel on going processes...
    }

    const selectedImages = images.map(image => {
        return (
            <div key={image.uuid}>
                <TakenByField />
                ...
                <img />
            </div>
        )
    })

    return (
        <div>
            <SaveButton onChange={handleSave}/>

            <CancelButton onClick={handleCancel}/>

            { selectedImages }
        </div>
    )
}

export default forwardRef(MyUploadPortal)

Functions should be accessible from NRP provided by ImageMetadata portal

• cancel

  • A function will be called when the ImageMetadata portal is unmounted to clean up onGoing processes for example.

How NRP render ImageMetadata

const MyAssignmentPortalWrapper = props => {
    const {
        selectedImages,
        confirm,
        closeConfirm,
        closeMetadataPortal
    } = props

    const imageMetadataRef = useRef()

    const handleOnClose = () => {
        if (imageMetadataRef.current) {
            if (typeof imageMetadataRef.current.cancel === 'function') {
                imageMetadataRef.current.cancel()
            }
        }

        closeMetadataPortal()
    }

    const handleOnSave = () => {
        closeMetadataPortal()
    }

    const handleOnCancel = () => {
        closeMetadataPortal()
    }

    return (
        <div>
            <CloseButton onClick={closeMetadataPortal}/>

            <ImageMetadata
                images={selectedImages}
                confirm={confirm}
                onSave={handleOnSave}
                onCancel={handleOnCancel}
                ref={imageMetadataRef}
                closeConfirm={closeConfirm}
            />
        </div>
    )
}
